DNR-18 Leak Detector with Digital Noise Reduction

The *DNR-18 Leak Detector* processes leak sound digitally to reduce traffic and other noises that disturb detection work.
Using the DNR-18 and its advanced digital noise reduction system, operators can pinpoint difficult to find leaks — even in noisy daytime environments.
A large backlit LCD provides simultaneous noise level, filter-setting, and recorded level display. Noise level recording and USB data output enable detailed analysis on a PC.
In stock and ready to order.

CALL 403 277 3300

Features

Advanced noise reduction and filtering
Eliminate traffic noise, impact sounds, footsteps and more with digital noise reduction and detailed high- and low-pass filtering. Remove A/C hum noise from power lines and transformers using the 50/60Hz notch filter.

Large LCD display for detailed data analysis
The large LCD provides simultaneous noise level, filter-setting, and recorded level display. View a graph of the noise level value to analyze changes over time.

Leak noise level recording and USB output
Record noise data for up to 250 locations in the unit memory for onsite reference, and download the noise level data to a PC by USB cable.

Built for demanding professional environments
A dustproof and water resistant enclosure allows operators to keep working in light rain or splash-prone environments. The LCD display is backlit for night use.

Specifications

Main unit
Total sensitivity: 900 V/G or higher (400Hz)
Low-pass filter: Thr, 100, 200, 400Hz
High-pass filter: 400, 600, 800, 1200, 2200Hz
Notch filter: 50Hz, 60Hz, OFF
Saved data: Minimum level value, data No., date/hour, flag point
Number of save files: up to 250
Power supply: Alkali C-size (LR14) battery x 4
Continuous working time: 24 hours or more
Working temperature range: -20ºC to +55ºC
Conforming standard: IP52 equivalent
Dimensions: 163 (W) x 76.5 (D) x 145 (H) mm
Weight: 780g (excluding batteries)

Pick-up
Type: Piezoelectric
Conforming standard: IP67 equivalent (water depth 1m, 30 minutes)
Power supply voltage: 3.3V DC

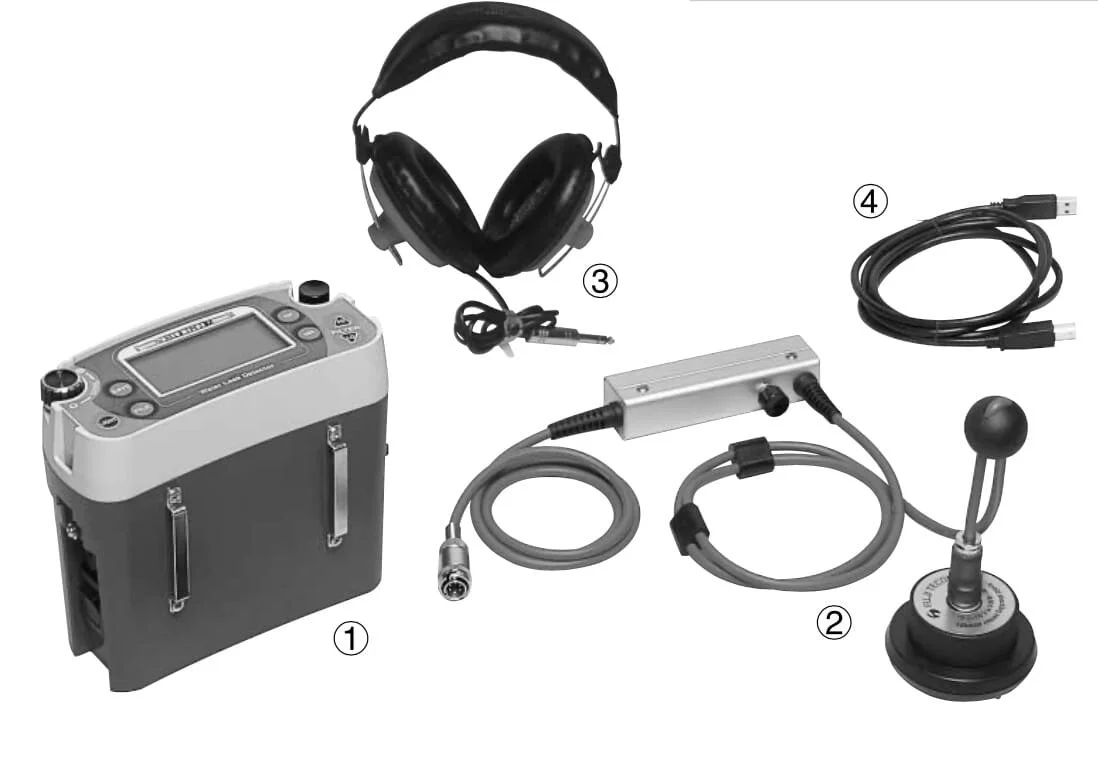

Components

Standard
1. Amplifier
2. Pick-up sensor with hand-switch set
3. Headphones (ST-3)
4. USB connecting cable
5. Software CD-ROM
6. Battery (U2, not pictured)
7. Shoulder strap
8. Aluminum carrying case (not pictured)

Optional accessories
9. Pick-up sensor with 3m cable for valve/fitting surveying
10. Contact bars and disc plate (3)
11. Aviation-grade stereo headphones
12. Hard carrying case (ABS plastic)

See images below for numbered components.
